ROUTER + SW + VPN DrayTek Vigor 2962 2xWAN
Cena brutto:
Cena netto: 2438,21 zł
Opis:
Router dla klientów biznesowych z obsługą do dwóch niezależnych sieci internetu , z obsługą szyfrowanych połączeń VPN , z funkcją rozdzielenia ruchu przez sieć LAN Gigabit z wbudowanym firewallem z filtrowaniem treści oraz detekcją włamań.Charakterystyka:
Vigor
2926 jest w stanie obsłużyć sieci
wymagające sporej przepustowości.
Router

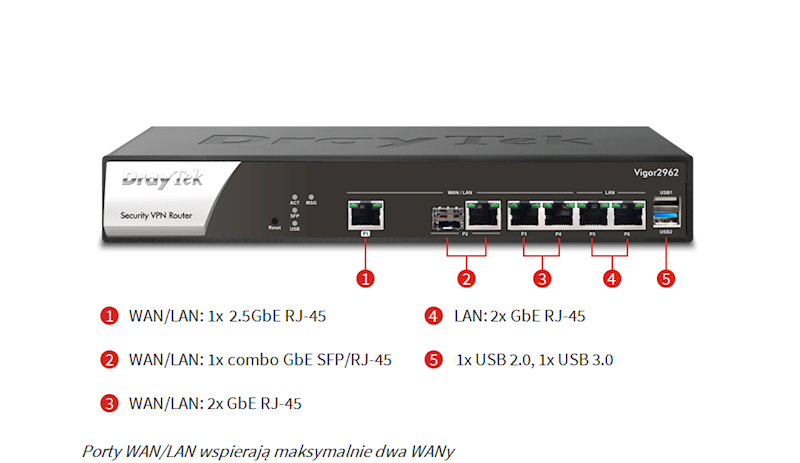

jest wyposażony w wydajny procesor, dwa interfejsy
WAN, w tym jeden 2,5Gb RJ-45 i jeden 1Gb SFP+
do łączności światłowodowej, cztery 1Gb
Ethernet.
Wszystkie porty WAN można przełączać między sieciami WAN i LAN,
aby zapewnić administratorowi sieci elastyczność pozwalającą w pełni
wykorzystać możliwości routera.
Funkcjonalność Multi WAN pozwala na pracę łączy w trybach:
Load Balancing lub Backup.
Performance | |
| NAT Session | 300K |
| Max. NAT with Software Acceleration (single-directional) (Mbps) | 2200 |
WAN | |
| Ethernet (1 GbE) | 2 |
| Ethernet (2.5 GbE) | 1 |
|
Ethernet - LAN/WAN Switchable
|
|
| SFP/Ethernet Combo | 1 |
|
SFP/Ethernet Combo - WAN/LAN Switchable
|
|
Internet Connection | |
| IPv4 |
PPPoE
DHCP
Static
IP |
| IPv6 |
PPP
DHCPv6
Static
IPv6
TSPC
AICCU
6rd
6in4 Static
Tunnel |
| 802.1p/q Multi-VLAN Tagging | |
| Multi-VLAN/PVC | |
| Failover | |
| Load Balancing | IP-based, Session-based |
| WAN Active on Demand | Link Failure, Traffic Threshold |
| Connection Detection | ARP, Strict ARP, Ping |
| WAN Data Budget | |
| Dynamic DNS | |
| DrayDDNS | |
LAN | |
| Fixed LAN (RJ-45, GbE) | 2 |
| LAN Subnet | 20 |
| VLAN |
802.1q Tag-based
VLAN
Port-based
VLAN |
| Max. Number of VLAN | 20 |
| DHCP Server |
Multiple IP
Subnet
Custom DHCP
Options
Bind-IP-to-MAC |
| LAN IP Alias | |
| Wired 802.1x Authentication | |
| Port Mirroring | |
| Local DNS Server | |
| Conditional DNS Forwarding | |
| Hotspot Web Portal (Profile No.) | 4 |
| Hotspot Authentication |
Click-Through
Social
Login
SMS
PIN
RADIUS
External
Portal Server |
Other Ports | |
| USB | 2 |
| USB Type | 2.0 + 3.0 |
Networking | |
| Routing |
IPv4 Static
Route
IPv6 Static
Route
Policy
Route
Inter-VLAN
Route
RIP
v1/v2
BGP
OSPF |
| Policy-based Routing |
Protocol
IP
Address
Port
Domain
Country |
| Smart Action | |
| High Availability |
Dray
High Availability
VRRP |
| DNS Security (DNSSEC) | |
| IGMP |
IGMP v2/v3
IGMP Proxy
IGMP Snooping & Fast
Leave |
| Local RADIUS server | |
VPN | |
| LAN-to-LAN | |
| Teleworker-to-LAN | |
| EasyVPN | |
| Port Knocking | |
| Protocols |
PPTP
L2TP
IPsec
L2TP over
IPsec
SSL
GRE
IKEv2
IKEv2-EAP
IPsec-XAuth
OpenVPN(Host to
LAN)
WireGuard |
| Max. VPN Tunnels | 200 |
| Max. OpenVPN + SSL VPN Tunnels | 50 |
| IPsec VPN Throughput (AES 256 bits) (single-directional) (Mbps) | 1000 |
| SSL VPN Throughput (single-directional) (Mbps) | 800 |
| User Authentication |
Local
RADIUS
LDAP
TACACS+
mOTP
TOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256, SHA-512, MD5 |
| Encryption |
MPPE
DES
3DES
AES |
| VPN Trunk (Redundancy) | Load Balancing, Failover |
| Single-Armed VPN | |
| NAT-Traversal (NAT-T) | |
| VPN from LAN | |
| VPN Isolation | |
| VPN Packet Capture | |
| VPN 2FA Authentication for AD/LDAP | |
| VPN Matcher | |
Firewall & Content Filtering | |
| NAT |
Port
Redirection
Open
Ports
Port
Triggering
Port
Knocking
DMZ
Host
UPnP |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP |
| IP-based Firewall Policy | |
| Content Filtering |
APP
URL
Keyword
DNS
Keyword
Web
Features
Web
Category*(*subscription required) |
| DoS Attack Defense | |
| Spoofing Defense | |
Bandwidth Management | |
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) |
TOS
DSCP
802.1p
IP Address
Service
Type |
| VoIP Prioritization | |
| APP QoS | |
WLAN | |
| 2.4GHz WLAN | None |
| 5GHz WLAN | None |
Management | |
| Local Service |
HTTP
HTTPS
Telnet
SSH
v2
FTP
TR-069 |
| Port Knocking for Local Service | |
| Config Backup/Restore | |
| Firmware Upgrade |
WUI, TFTP,
TR-069 |
| 2-Level Administration Privilege | |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| SNMP | v1, v2c, v3 |
| Syslog | |
| AP Managment | 50 |
| Switch Management | 30 |
| VigorACS Management (Since f/w) | V3.9.3 |
Physical | |
| Power Input | AC 110-220V @ 1A |
| Max. Power Consumption (watts) | 15 |
| Dimension (mm) | 273 x 171 x 45 |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
