ROUTER + SW + VPN DrayTek Vigor 2136ax 1xWAN 2xVPN
Cena brutto:
Cena netto: 893,50 zł
Opis:
Router dla klientów biznesowych z obsługą jednej sieci internetu oraz sieci zapasowej na USB , z obsługą szyfrowanych połączeń VPN , z funkcją rozdzielenia ruchu przez sieć WiFi , z obsługą 2,5 Gb LAN oraz WiFi axCharakterystyka:
1x WAN | 4 podsieci | 16 VPN | 50 tys. sesji
- WAN 2.5 Gigabit Ethernet z wydajnością NAT do 2.3 Gbps
- Dwuzakresowe Wi-Fi 6 (AX3000) z prędkością 2402Mbps dla 5GHz oraz 574Mbps dla 2.4GHz
- WAN Failover
- 16 równoczesnych tuneli VPN IPsec/WireGuard/OpenVPN
- Wydajność IPsec do 300 Mbps
- Firewall SPI z filtrowaniem treści według słów kluczowych URL, kategorii stron, aplikacji
- USB do podłączenia modemu 3G/4G, dodatkowej pamięci, termometru, drukarki
- Centralne zarządzanie VigorAP
- Bezpłatna usługa DrayDDNS z certyfikatem Let’s Encrypt
- System DrayOS 5
- DEMO WebUI – seria Vigor 2136
Model |
Vigor2136 |
Vigor2136ax |
Performance | ||
| NAT Session | 50K | |
| Max. NAT (Mbps) | 2300 | |

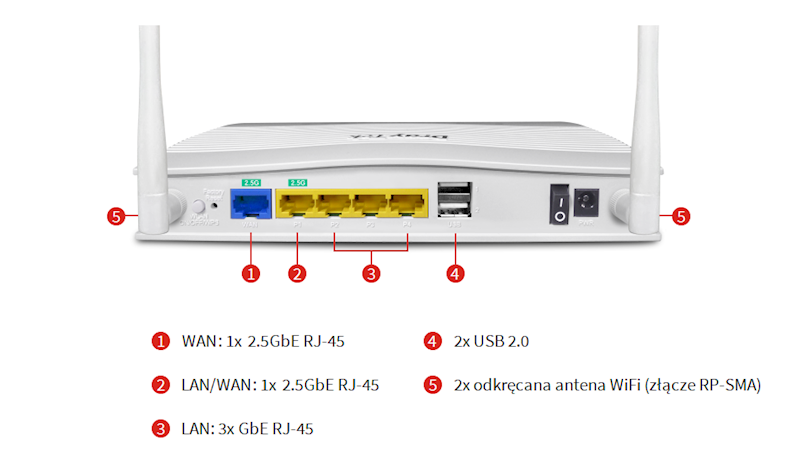

WAN | ||
| Ethernet (2.5 GbE) | 2 | |
|
Ethernet - LAN/WAN Switchable
|
||
| Cellular (via USB) | 2 | |
| Wireless WAN (2.4GHz + 5GHz) | ||
Internet Connection | ||
| IPv4 |
PPPoE
DHCP
Static IP | |
| IPv6 |
PPP
DHCPv6
Static IPv6
TSPC
6rd
6in4 Static
Tunnel | |
| 802.1p/q Multi-VLAN Tagging | ||
| Failover | ||
| Connection Detection | ARP, Ping | |
| WAN Data Budget | ||
| Dynamic DNS | ||
| DrayDDNS | ||
LAN | ||
| Fixed LAN (RJ-45, GbE) | 3 | |
| LAN Subnet | 4 | |
| VLAN |
802.1q Tag-based
VLAN | |
| Max. Number of VLAN | 8 | |
| DHCP Server |
Multiple IP
Subnet
Custom DHCP
Options
Bind-IP-to-MAC | |
| Wired 802.1x Authentication | ||
| Port Mirroring | ||
| Local DNS Server | ||
| Conditional DNS Forwarding | ||
| Hotspot Web Portal (Profile No.) | 2 | |
| Hotspot Authentication |
Click-Through
Social
Login
SMS
PIN
RADIUS
External
Portal Server | |
WLAN | ||
| 2.4GHz WLAN | 802.11ax 2x2 MIMO | |
| 5GHz WLAN | 802.11ax 3x3 MU-MIMO | |
| WiFi Antenna (External) | 2 | |
| WiFi Antenna (Internal) | 1 | |
| 2.4GHz Antenna Gain (dBi) | 2.6 | |
| 5GHz Antenna Gain (dBi) | 2.7 | |
| 2.4GHz Max. Link Rate (Mbps) | 574 | |
| 5GHz Max. Link Rate (Mbps) | 2402 | |
| Max. Number of SSIDs (per band) | 8 (4) | |
| Security Mode |
OWE
WEP
WPA
WPA2
WPA2/WPA
WPA3
WPA3/WPA2 | |
| Authentication | Pre-Shared Key, 802.1X | |
| WiFi 6 | ||
| OFDMA | ||
| Roaming |
Assisted
Roaming | |
| WPS | WPS Button, PIN Code | |
| WDS | Repeater | |
| Access Control |
Access
List
Client
Isolation
Hide
SSID
WLAN
Scheduling | |
| AirTime Fairness | ||
| Band Steering | ||
| WMM | ||
| Mesh (5GHz Only) | Root | |
Other Ports | ||
| USB | 2 | |
| USB Type | 2.0 | |
| USB Application |
User
Management
FTP File
Sharing
Device
Status
Printer
Server
Temperature
Sensor
USB
WAN
File
Explorer | |
| SMB File Sharing (Requires external storage) | ||
Networking | ||
| Routing |
IPv4 Static
Route
IPv6 Static
Route
Policy Route
Inter-VLAN
Route
RIP v1/v2
OSPF(V2/V3)
BGP | |
| Policy-based Routing |
Protocol
IP
Address
Port | |
| DNS Security (DNSSEC) | ||
| IGMP |
IGMP v2/v3
IGMP Proxy
IGMP Snooping & Fast
Leave | |
| Local RADIUS server | ||
Bandwidth Management | ||
| Traffic Shaping Policy | ||
| IP-based Bandwidth Limit | ||
| IP-based Session Limit | ||
| QoS (Quality of Service) |
IP Address
Port
Application | |
| APP QoS | ||
| Default Policy | ||
| VoIP Prioritization | ||
NAT | ||
| Port Forwarding | ||
| DMZ Host | ||
| Port Trigger | ||
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 | |
| UPnP | ||
Management | ||
| Local Service |
HTTP
HTTPS
Telnet
SSH v2
FTP
TR-069 | |
| Config Backup/Restore | ||
| Firmware Upgrade |
WUI, TFTP,
TR-069 | |
| Role-based Privilege | ||
| Access Control | Access List, Brute Force Protection | |
| Notification Alert | SMS, E-mail | |
| SNMP | v1, v2c, v3 | |
| Syslog | ||
| Virtual AP Controller (Device up to) | 20 | |
| Mesh (Number of manageable APs) | 7 | |
| Virtual Switch Controller | 5 | |
| VigorACS Management (Since f/w) | V5.3.0 | |
Security | ||
| URL/IP Reputation | ||
| Firewall Filter | IP, Content, Traffic | |
| Port Knocking | ||
| Defense Setup | ARP Spoofing, IP Spoofing | |
| MAC Filtering Profile | ||
| IPv6 Address Security | ||
IAM | ||
| Users & Groups | ||
| Access Policies | ||
| Group Policies | ||
| Conditional Access Policy | ||
| Resources | ||
| Account Status | ||
| Backup and Restore | ||
VPN | ||
| Site-to-Site VPN | ||
| Teleworker VPN | ||
| EasyVPN | ||
| Protocols |
IPsec
IKEv1/IKEv2
IKEv2-EAP
IPsec-XAuth
OpenVPN
WireGuard | |
| Max. VPN Tunnels | 16 | |
| IPsec VPN Throughput (AES 256 bits) (single-directional) (Mbps) | 390 | |
| WireGuard VPN Throughput (single-directional) (Mbps) | 90 | |
| User Authentication |
Local
RADIUS
TACACS+
mOTP
TOTP | |
| IKE Authentication | Pre-Shared Key, X.509 | |
| IPsec Authentication | SHA-1, SHA-256 | |
| Encryption |
DES
3DES
AES | |
| Single-Armed VPN | ||
| NAT-Traversal (NAT-T) | ||
| VPN Connection Status | ||
| Backup & Restore | ||
Monitoring | ||
| Clients List | ||
| Log Center | ||
| Wireless Information | ||
| WAN | ||
| ARP Table | ||
| Route Table | ||
| DHCP Table | ||
| IPv6 TSPC Status | ||
| IPv6 Neighbor Table | ||
| LLDP Neighbors | ||
| DNS Cache Table | ||
| Remote DSL Status | ||
| PPPoE Pass-Through | ||
| Session Table | ||
| Running Table | ||
Physical | ||
| Power Input | DC 12V @ 0.9A | DC 12V @ 1.5A |
| Max. Power Consumption (watts) | 10 | 18 |
| Dimension (mm) | 207 x 131 x 42 | |
| Operating Temperature | 0 to 45°C | |
| Storage Temperature | -25 to 70°C | |
| Operating Humidity (non-condensing) | 10 to 90% | |
